Motorisation for 2-leaf SLID'UP BRA-VO radio shutter
Reference : W0002400
- Surface-mounted motorisation for hinged shutters
- Radio control with remote
- For 2 leaves, left and right
- Maximum leaf weight: 50 kg
- Made in France
- Warranty: 2 years
- Quantity: 2
In stock
Delivery in 3 to 5 days
€838.43
Tax included
€628.82
Tax included
Ou 3x 209.61 € sans frais
Description
Attention: Shutter not included in the kit.
Motorisation for 2-leaf BRA-VO radio shutters 230V.
Motorisation for surface mounting, ideal for curved or rounded lintels.
BRA-VO motorisations fit all types of hinged shutters (wood, PVC, aluminium...), both new installations and renovations.
For more details, please refer to the installation manual.
Specifications to be respected:
- Leaf width: min 40 cm / max 80 cm
- Max leaf surface: 1.6 m²
- Max leaf weight: 50 kg
- Frame width: 15 cm
- Max distance from hinge axis to shutter edge: 40 mm
Description:
- Complete kit, ready to install: the BRA-VO shutter motorisation is quick and easy to fit.
- One press and all your shutters close.
- Secure: obstacle detection according to standard NF 26-341. In case of an obstacle, the shutter returns to its initial position.
- Flexible use: control the opening of all or some of your shutters. Possibility to stop shutters in a slightly open position.
- New or renovation: fits all types of hinged shutters, including linked leaves with our accessory compas multivantaux W0000400.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.

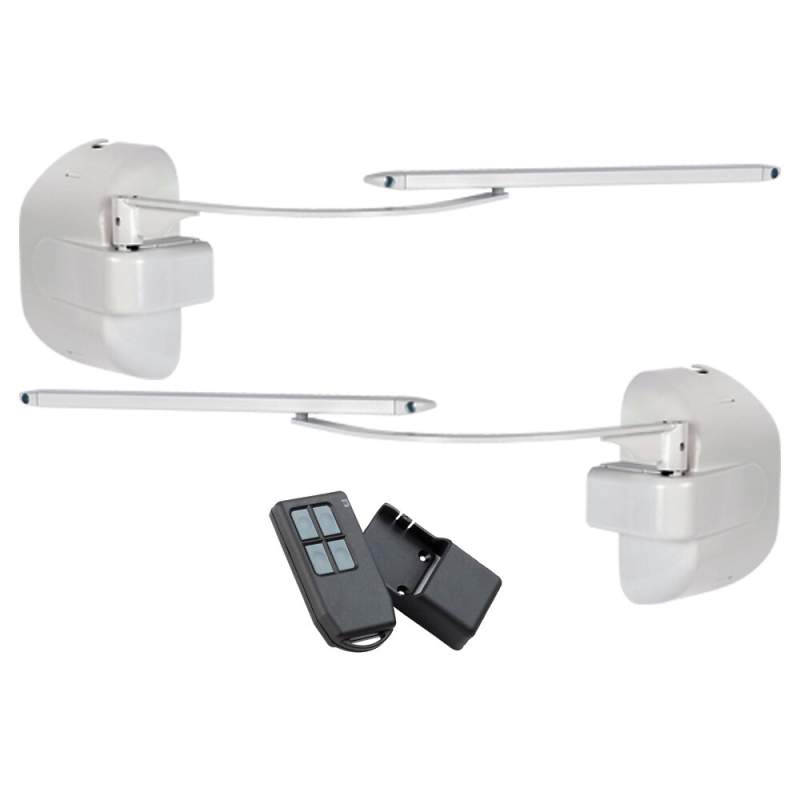

Kit contents:
- 2 motors (1 left and 1 right) + electronics
- 2 arms (1 left and 1 right)
- 2 rails + end caps
- 2 covers + caps
- 1 set of screws (screws, plugs, sleeves, spacer)
- 1 BOSys 433.92 MHz radio remote control
- 3 metres of 220/230V power cable
- 3 metres of cable for the right motor connection
Other colours available as options: please contact us on 03 80 38 90 60
Options:
C0004750: programmable radio timer
C0004760: programmable radio repeater (to double the range)
C0004770: programmable radio remote control
C0004780: programmable radio switch
C0007105BR: 1.2 m aluminium guide rail (ideal for louvered shutters)
W0000400: stainless steel compass for linked leaves
Other white or black arms
Electromagnetic or electromechanical lock
All spare parts for SLID'UP BRA-VO
Motorisation for 2-leaf BRA-VO radio shutters 230V.
Motorisation for surface mounting, ideal for curved or rounded lintels.
BRA-VO motorisations fit all types of hinged shutters (wood, PVC, aluminium...), both new installations and renovations.
For more details, please refer to the installation manual.
Specifications to be respected:
- Leaf width: min 40 cm / max 80 cm
- Max leaf surface: 1.6 m²
- Max leaf weight: 50 kg
- Frame width: 15 cm
- Max distance from hinge axis to shutter edge: 40 mm
Description:
- Complete kit, ready to install: the BRA-VO shutter motorisation is quick and easy to fit.
- One press and all your shutters close.
- Secure: obstacle detection according to standard NF 26-341. In case of an obstacle, the shutter returns to its initial position.
- Flexible use: control the opening of all or some of your shutters. Possibility to stop shutters in a slightly open position.
- New or renovation: fits all types of hinged shutters, including linked leaves with our accessory compas multivantaux W0000400.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 2 motors (1 left and 1 right) + electronics
- 2 arms (1 left and 1 right)
- 2 rails + end caps
- 2 covers + caps
- 1 set of screws (screws, plugs, sleeves, spacer)
- 1 BOSys 433.92 MHz radio remote control
- 3 metres of 220/230V power cable
- 3 metres of cable for the right motor connection
Other colours available as options: please contact us on 03 80 38 90 60
Options:
C0004750: programmable radio timer
C0004760: programmable radio repeater (to double the range)
C0004770: programmable radio remote control
C0004780: programmable radio switch
C0007105BR: 1.2 m aluminium guide rail (ideal for louvered shutters)
W0000400: stainless steel compass for linked leaves
Other white or black arms
Electromagnetic or electromechanical lock
All spare parts for SLID'UP BRA-VO
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Swinging shutter |
|---|---|
| B2C warranty | 2 years |
| Activity | Doors |
| Closing time | 16 s |
| Colour | White |
| Control type | Radio |
| For shutter or leaf | 2 leaves |
| Limit switch type | Dynamic (stop on obstable) |
| Maximum leaf thickness | 40 mm (1") |
| Maximum power | 100 W |
| Max leaf surface | 1.6 m² |
| Maximum weight / leaf | 50 kg |
| Maximum width / leaf | 80 cm |
| Motor position | On the left and on the right |
| Motor torque | 25 Nm |
| Motor type | Motoréducteur à courant continu |
| Motor voltage | 24 V CC |
| Mounting type | Wall mounting |
| Number of leaves | 2 leaves |
| Number of motors | 2 |
| Number of motors / leaf | 1 |
| Opening time | 16 s |
| Operating temperature | -20°C to 60°C |
| Made in | France |
| Product family | Motorization kit |
| Protection class | IP54 |
| Radio frequency | 433.92 MHz |
| Range | SLID'UP BRA-VO |
| Supply voltage | 230 V CA |
| Use | Exterior |
| Brand | SLID'UP by Mantion |
