Motorisation for 2-leaf SLID'UP URANUS wired shutter - Ø 14 mm hinge - sealing kit - switching power supply
Reference : W0002210PACK2
- Invisible motorisation Ø 14 mm for swing shutters
- Pack with sealing kit + switched-mode power supply
- Wired control with switch
- For 2 leaves, left and right
- Maximum leaf weight: 50 kg
- Made in France
- Warranty: 2 years
- Quantity: 2
In stock
Delivery in 3 to 5 days
€675.58
Tax included
€506.68
Tax included
Ou 3x 168.89 € sans frais
Description
Warning: Shutter not included in the kit.
Recessed motorisation pack for 2-leaf shutters URANUS Wired - hinge Ø 14 + 1 resin kit + 1 power supply.
Motorise your hinged shutters discreetly, preserving the character of your façade, thanks to the innovative motorised hinge system recessed directly into the wall.
The URANUS motorisations adapt to all types of hinged shutters (wood, PVC, aluminium...), whether new or renovated.
With this product, we recommend using hinges with a minimum thickness of 5 mm, made of steel or stainless steel.
For more details, please consult the installation manual.
Specifications to be respected:
- Leaf width: min 30 cm / max 80 cm
- Max leaf surface area: 1.6 m²
- Max leaf weight: 50 kg
- Minimum distance from hinge axis to shutter edge: 30 mm
- Minimum hinge thickness (steel or stainless steel): 5 mm
Description:
- Discreet: a completely invisible motorised hinge system.
- Secure: obstacle detection according to NF 26-341 standard.
- Ease of use: control the opening of all or part of your shutters.
- New or renovation: adapts to all types of hinged shutters including linked leaves with our accessory compas multivantaux W0000400.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.

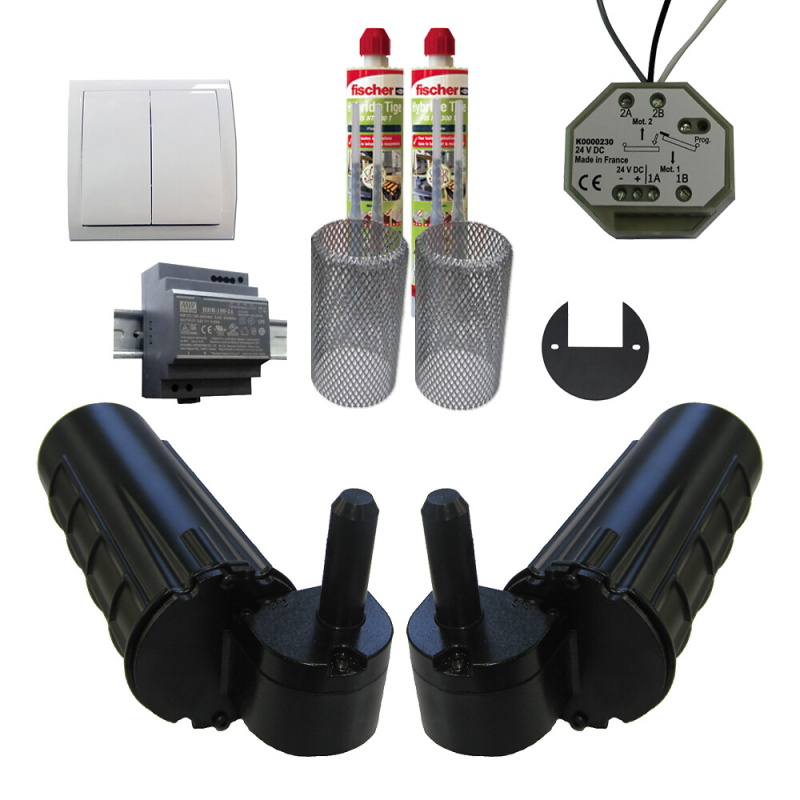

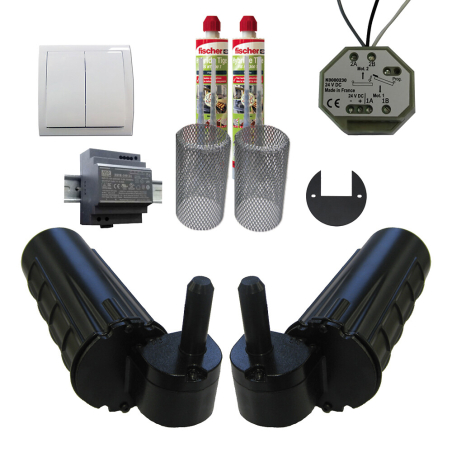

Kit contents:
- 2 motors (1 left and 1 right, viewed from outside)
- 1 control box
- 1 switch
- 1 resin kit for 2 motors C0000485
- 1 switching power supply for DIN rail reference C0000265
- 1 set of screws (screws, gasket...)
Other colours available as an option: please contact us at 03 80 38 90 60
Options:
C0004750: programmable radio timer
C0004760: programmable radio repeater (to double the range)
C0004770: programmable radio remote control
C0004780: programmable radio switch
C0000485: chemical sealing kit for 2 motors
W0000400: stainless steel compass for linked leaves
W0000460: drilling template for hinge Ø 14 to 18
Switching or recessed power supply
Electromagnetic or electromechanical lock
All spare parts for SLID'UP URANUS
Recessed motorisation pack for 2-leaf shutters URANUS Wired - hinge Ø 14 + 1 resin kit + 1 power supply.
Motorise your hinged shutters discreetly, preserving the character of your façade, thanks to the innovative motorised hinge system recessed directly into the wall.
The URANUS motorisations adapt to all types of hinged shutters (wood, PVC, aluminium...), whether new or renovated.
With this product, we recommend using hinges with a minimum thickness of 5 mm, made of steel or stainless steel.
For more details, please consult the installation manual.
Specifications to be respected:
- Leaf width: min 30 cm / max 80 cm
- Max leaf surface area: 1.6 m²
- Max leaf weight: 50 kg
- Minimum distance from hinge axis to shutter edge: 30 mm
- Minimum hinge thickness (steel or stainless steel): 5 mm
Description:
- Discreet: a completely invisible motorised hinge system.
- Secure: obstacle detection according to NF 26-341 standard.
- Ease of use: control the opening of all or part of your shutters.
- New or renovation: adapts to all types of hinged shutters including linked leaves with our accessory compas multivantaux W0000400.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 2 motors (1 left and 1 right, viewed from outside)
- 1 control box
- 1 switch
- 1 resin kit for 2 motors C0000485
- 1 switching power supply for DIN rail reference C0000265
- 1 set of screws (screws, gasket...)
Other colours available as an option: please contact us at 03 80 38 90 60
Options:
C0004750: programmable radio timer
C0004760: programmable radio repeater (to double the range)
C0004770: programmable radio remote control
C0004780: programmable radio switch
C0000485: chemical sealing kit for 2 motors
W0000400: stainless steel compass for linked leaves
W0000460: drilling template for hinge Ø 14 to 18
Switching or recessed power supply
Electromagnetic or electromechanical lock
All spare parts for SLID'UP URANUS
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Swinging shutter |
|---|---|
| B2C warranty | 2 years |
| Activity | Doors |
| Closing time | 18 s |
| Colour | Black |
| Control type | Wired |
| For shutter or leaf | 2 leaves |
| Hinge diameter | 14 mm |
| Limit switch type | Dynamic (stop on obstable) |
| Maximum power | 100 W |
| Max leaf surface | 1.6 m² |
| Maximum weight / leaf | 50 kg |
| Maximum width / leaf | 80 cm |
| Min. distance hinge axis / leaf edge | 30 mm |
| Motor position |
On the left On the right |
| Motor torque | 25 N |
| Motor type | Motoréducteur à courant continu |
| Motor voltage | 24 V CC |
| Mounting type | Built-in motorized hinge |
| Number of leaves | 2 leaves |
| Number of motors / leaf | 1 |
| Opening time | 18 s |
| Operating temperature | -30°C to 70°C |
| Option | Resin kit + switching power supply |
| Made in | France |
| Product family | Motorization kit |
| Protection class | IPX4 |
| Range | SLID'UP URANO |
| Rotation speed | 1.9 rpm |
| Supply voltage | 230 V CA |
| Use | Exterior |
| Brand | SLID'UP by Mantion |
