SLID'UP 170 sliding system for 1 door up to 1200 mm - 2.4 m rail - 120 kg

SLID'UP 170 sliding system for 1 partition door - ceiling or pocket door mounting - 2.4 m rail - suspended sliding.

For surface mounting, use the optional wall brackets available.

Maximum door weight: 120 kg
Door thickness: 22 to 45 mm
Maximum door width: 1200 mm

Note: Door not included in the kit.

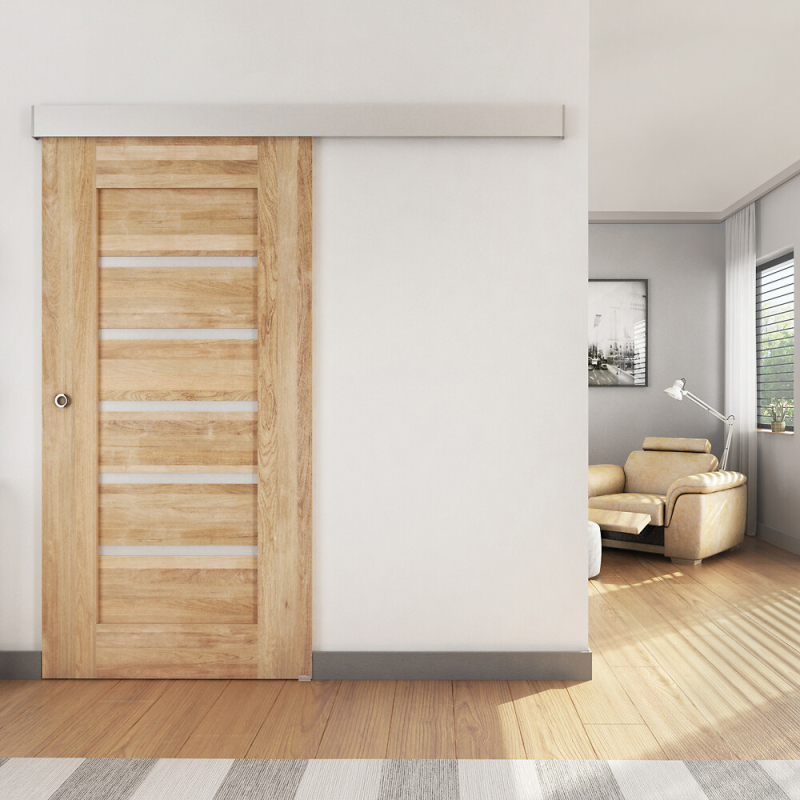

Robust and reliable, the SLID'UP 170 interior door sliding system ensures a smooth and silent movement of your door thanks to the ball bearing mounts.

The aluminium rails and finishing strips can be cut to the desired length to perfectly fit your door dimensions.

Simple and quick installation for a custom interior sliding door with finishing strip and optional door closer damper.

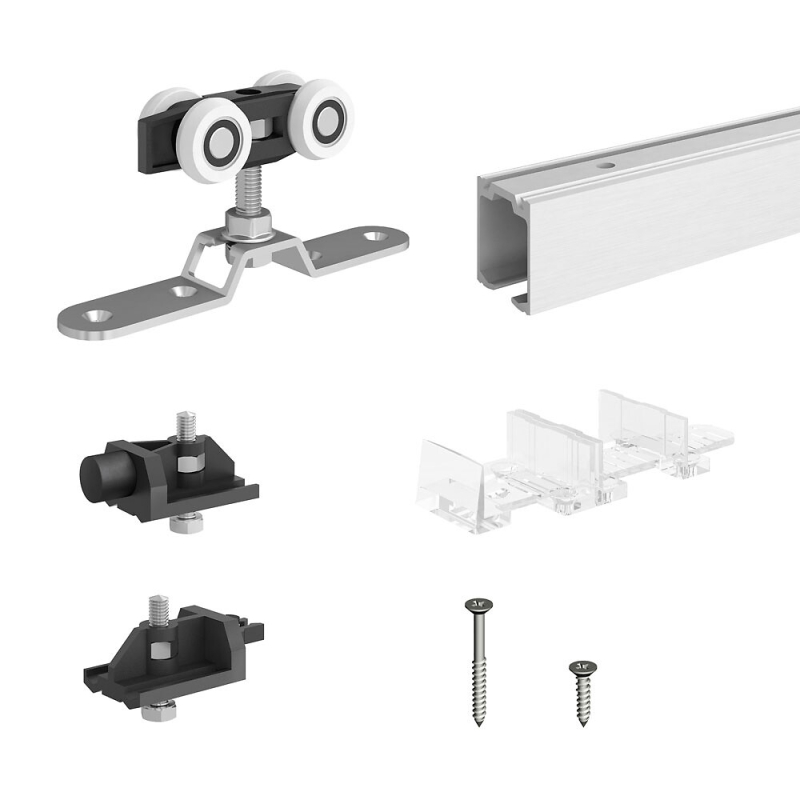

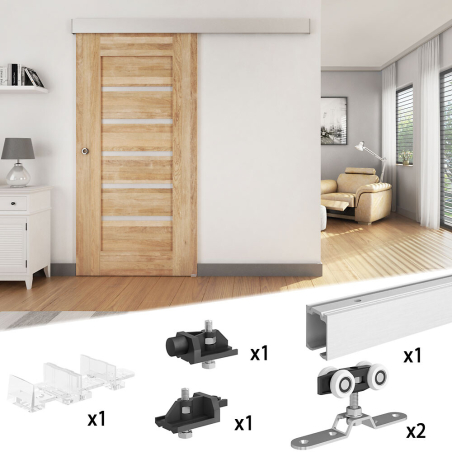

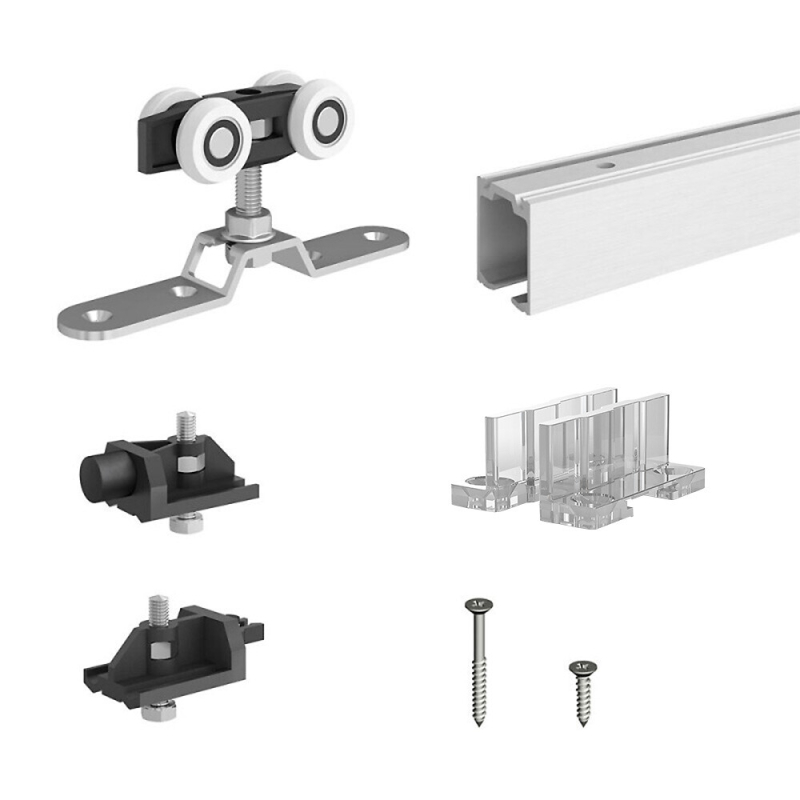

Kit contents:
- 1 cuttable 2400 mm rail
- 2 mounts
- 1 stop block
- 1 holding stop
- 1 guide
- 1 set of screws

Mounting options:



Mounting A:
Ceiling mounting without finishing strip.
This kit contains all the elements for this type of mounting.

Mounting B:
Surface mounting with aluminium finishing strip.
Add 6 wall fixing brackets for doors up to 45 mm thick (reference SU5233).

Mounting C:
Surface mounting with wooden finishing strip.
Add 6 wall fixing brackets for doors up to 45 mm thick (reference SU5233).
Add 3 wall fixing brackets for doors 25 to 45 mm thick (reference SU5243).

Mounting D:
Ceiling mounting with aluminium finishing strip.
Add 9 ceiling fixing spacers (reference SU5212).

Options:
SU5136: kit for an additional door
SU5478: door closer damper
SU5226: natural anodised aluminium finishing strip - L = 2.4 m
SU5227: gold anodised aluminium finishing strip - L = 2.4 m
SU5228: bronze anodised aluminium finishing strip - L = 2.4 m
SU5232: synchronisation kit for two doors
All spare parts for SLID'UP 170
