Système coulissant SLID'UP 1100 pour une porte de séparation - 3 rails raccordables 1 m - 80 kg
Reference : SU1108
- Sliding system for a partition door
- Kit including rails and all accessories for easy installation
- Ceiling or surface mounting (with optional wall mounting brackets)
- Possibility to add additional connectable rails
- For 1 door up to 80 kg
- Rail material: aluminium
- Rail length: 3 x 0.99 m
- Warranty: 5 years
In stock
Delivery in 3 to 5 days
€148.83
Tax included
Description
SLID'UP 1100 sliding system for 1 partition door - 3 connectable 0.99 m aluminium rails - Surface-mounted or pocket sliding.
Door weight: max 80 kg
Door thickness: min 24 mm
Warning: Door not included in the kit.
The SLID'UP 1100 system is an aluminium sliding system for interior partition doors with a high-end finish.
It is suitable for doors with a maximum weight of 80 kg and a minimum thickness of 24 mm.
Thanks to its offset brackets, it allows for instant installation. Its ball joint bearings improve the system's durability and allow it to adapt to imperfections in the installation surface.
For greater ease of use, the system is equipped with stop buffers that allow the door to be held in the open or closed position.
The SLID'UP 1100 sliding system is silent. The result of many hours of study and testing, its ball bearing carriages guarantee unrivalled smoothness and comfort.
This kit contains all the necessary elements for ceiling mounting. Surface mounting is done by adding reinforced bracket supports SU5034 for doors up to 40 mm thick.

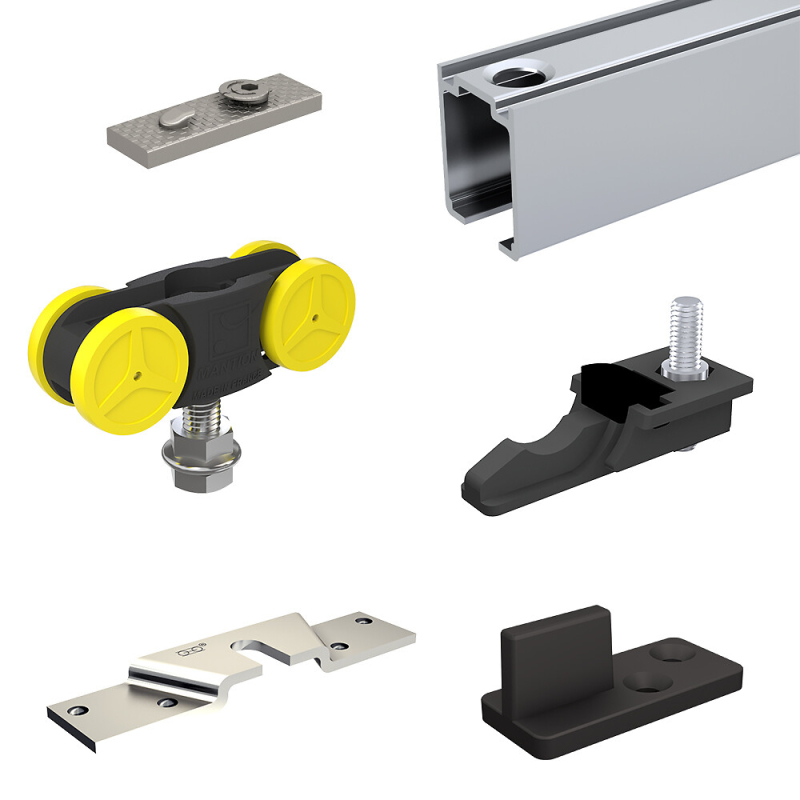

Kit contents:

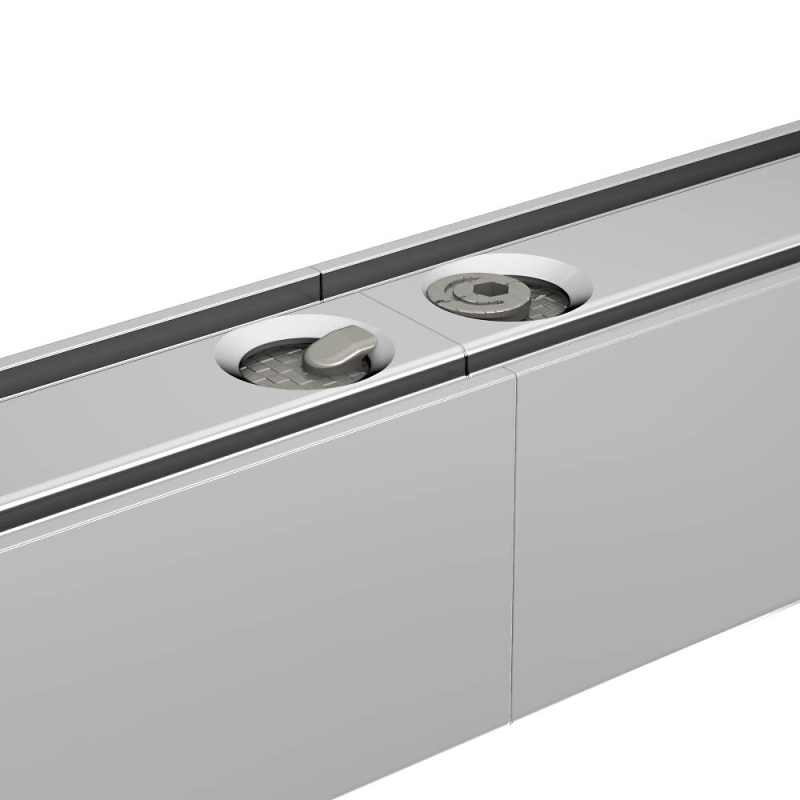

- 3 connectable aluminium rails of 0.99 m
- 2 ball bearing carriages
- 2 fixing plates
- 2 stop buffers
- 1 guide
- 1 adjustment key
- 1 set of screws
Options:
SU1106: kit for one additional 80 kg door
SU5029: 80 kg hydraulic door closer damper
SU5019: additional 0.99 m connectable rail
SU5034: wall fixing bracket
SU5035: wall fixing bracket for 2 parallel rails
All spare parts for SLID'UP 1100
Door weight: max 80 kg
Door thickness: min 24 mm
Warning: Door not included in the kit.
The SLID'UP 1100 system is an aluminium sliding system for interior partition doors with a high-end finish.
It is suitable for doors with a maximum weight of 80 kg and a minimum thickness of 24 mm.
Thanks to its offset brackets, it allows for instant installation. Its ball joint bearings improve the system's durability and allow it to adapt to imperfections in the installation surface.
For greater ease of use, the system is equipped with stop buffers that allow the door to be held in the open or closed position.
The SLID'UP 1100 sliding system is silent. The result of many hours of study and testing, its ball bearing carriages guarantee unrivalled smoothness and comfort.
This kit contains all the necessary elements for ceiling mounting. Surface mounting is done by adding reinforced bracket supports SU5034 for doors up to 40 mm thick.
Kit contents:
- 3 connectable aluminium rails of 0.99 m
- 2 ball bearing carriages
- 2 fixing plates
- 2 stop buffers
- 1 guide
- 1 adjustment key
- 1 set of screws
Options:
SU1106: kit for one additional 80 kg door
SU5029: 80 kg hydraulic door closer damper
SU5019: additional 0.99 m connectable rail
SU5034: wall fixing bracket
SU5035: wall fixing bracket for 2 parallel rails
All spare parts for SLID'UP 1100
Technical documentation
Installation instructions
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Partition door |
|---|---|
| B2C warranty | 5 years |
| Activity | Doors |
| Door frame material | Wood |
| Door thickness | 24 mm min, |
| Installation type |
Ceiling mounting In between walls Wall mounting |
| Maximum door weight | 80 kg |
| Number of doors - Track length (m) | 1 - 3 x 1 m |
| Number of doors | 1 |
| Number of track | 3 tracks |
| Made in | France |
| Product family | Sliding kit |
| Range | SLID'UP 1100 |
| Track length (m) | 3 m |
| Track material | Aluminum |
| Brand | SLID'UP by Mantion |
Guaranteed quality
SLID'UP by Mantion guarantees all its sliding systems for 5 years and its motors for 2 years.
Fast delivery
Delivery of in-stock products is guaranteed within 3 to 5 days to your home. Shipping is carried out from our company located in France.
Secure payment
Online payment for your orders is fully secured by credit card, 4x installment with no fees, PayPal or bank transfer.
