SLID'UP 1000 sliding system for a partition door - 1.95 m aluminium rail - 40 kg

SLID'UP 1000 sliding system for 1 partition door - 1.95 m aluminium rail - Surface-mounted or pocket sliding.

Door weight: max 40 kg
Door thickness: min 24 mm

Warning: Door not included in the kit.

The SLID'UP 1000 system is an aluminium sliding system for interior partition doors with a high-end finish.

It is suitable for doors weighing up to 40 kg and with a minimum thickness of 24 mm.

Thanks to its offset brackets, it allows for instant installation. Its ball joint pivots improve the system's durability and enable adaptation to imperfections in the mounting surface.

Use is made comfortable by an adjustable clamp stop. It allows you to hold the door in the open or closed position.

The SLID'UP 1000 sliding system is silent. The result of many hours of study and testing, its ball bearing mounts guarantee unmatched smoothness and comfort.

This kit contains all the necessary components for ceiling mounting. Surface mounting is done by adding wall mounting brackets SU5027 for doors up to 40 mm thick.

For a perfect finish, you can clip a finishing strip onto the rail for surface or ceiling mounting.

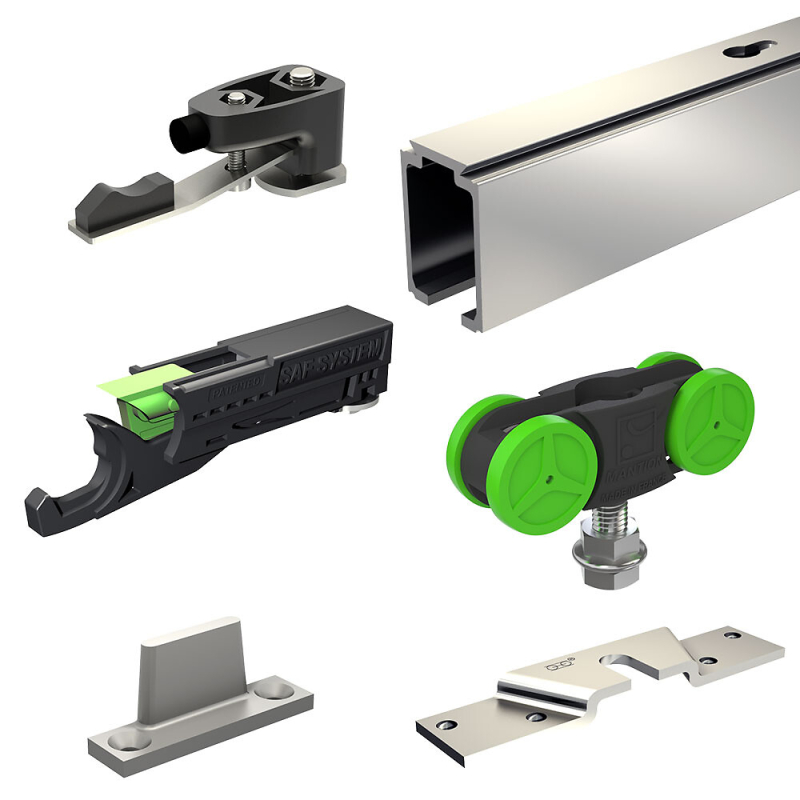

Kit contents:
- 1 aluminium rail, 1.95 m
- 2 ball bearing mounts
- 2 fixing plates
- 1 adjustable stop
- 1 door closer damper
- 1 guide
- 1 adjustment key
- 1 set of screws

Options:
SU1005: kit for an additional 40 kg door
SU5028: hydraulic door closer damper 40 kg
SU5010: finishing strip with end caps for surface mounting 1.95 m
SU5013: finishing strip for ceiling mounting 1.95 m
SU5027: wall mounting bracket
SU5021: wall mounting bracket for 2 parallel rails
All spare parts for SLID'UP 1000
