SLID'UP 1400 sliding system for manual shutter - surface-mounted - 2 panels

Warning: Shutter not included in the kit.

SLID'UP 1400 sliding system for shutters allowing the manual movement of two sliding panels weighing up to 30 kg each (wood, aluminium, PVC...).

This kit is designed for front mounting with a galvanised steel finishing strip. It is recommended to paint the finishing strip to prevent any corrosion.

Steel mounts with nylon rollers ensure smooth, silent, and effortless movement.

All necessary components are provided in the kit for quick and easy front mounting.

Specifications to be respected:
- Maximum opening width: 1890 mm
- Maximum panel weight: 30 kg each
- Panel thickness: 25-35 mm

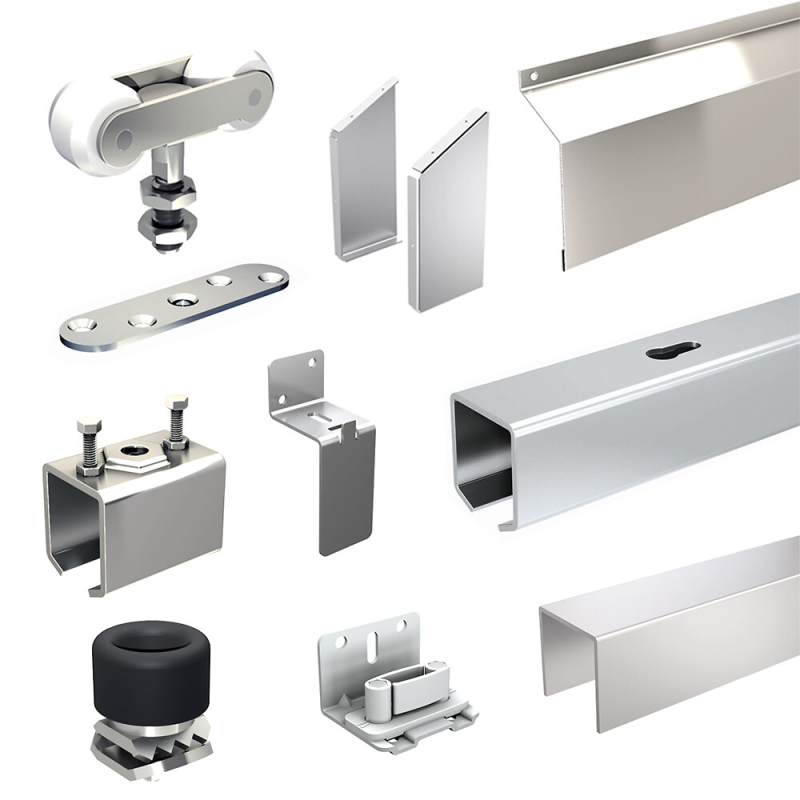

Kit contents:
- 2 galvanised steel rails, length = 1.95 m
- 2 galvanised steel finishing strips, length = 1.95 m (to be painted)
- 1 set of left and right end caps for finishing strips
- 2 U-shaped guide profiles, length = 1.95 m
- 11 wrap-around sleeves for rail fixing
- 10 wall mounting brackets (to be fixed every 440 mm)
- 4 mounts on smooth axle with nylon rollers
- 4 steel plates to screw on edge (minimum panel thickness 20 mm)
- 4 adjustable bottom guides on bracket
- 4 clamp stops (adjustable force)

Options:
1313: metal sliding shutter lock
SU5030: synchronisation kit for 2 panels
All spare parts for SLID'UP 1400
